Product families

318-B LSZH wires

Low smoke zero halogen cables (flexible LSZH wires) for indoor uses and installations in public areas (hospitals, airports, cinemas, etc. ), with IMQ-HAR certificate, type H05Z1Z1-F manufactered accordingly to BS EN 50525-3-11. What does LSZH wires mean?

Zero halogen wires, multi-core, LSFR0H / LSFR0H

Low Smoke Zero Halogen cables FZ1OZ1 - LSFR0H/LSFR0H wires, fire-retardant according to IEC 60332-3-24; available also in the 105°C rated FZ1OZ1 - LSFR0H/LSFR0H 105°C version.

LS0H Extra-Flex Cables

Halogen-free IEC cables, particularly with high flexibility and flame resistant according to IEC 60332-1-2.

Halogen-Free Screened Cables: LiHCH

Halogen-free signal and control screened cables, complied with requirements of DIN VDE 0245 and 0812 standards, flame retardant according to IEC 60332-1-2 and fire retardant according to IEC 60332-3-24.

LSHF cables: H03Z1Z1-F, H03Z1Z1H2-F

IMQ-HAR approved halogen-free multi-core flexible wires (LSHF cables).

Zero Halogen Cables: H05/H07Z-K, H07Z-R, H05/H07Z-U

Zero Halogen Cables IMQ-HAR approved 90°C cross-linked and low smoke zero halogen insulated rubber conforming to BS EN 50525 ( 6491-B/H07Z-R ). Comply with class Eca of new CPR regulation.

LSZH Cables: H05BQ-F

IMQ-HAR approved LSZH flexible cables: PUR jacketed power halogen free RoHS cables for hard usage.

H05Z-K PLUS SI-NRG 105 LLOYD'S REG.

Halogen-free IMQ-HAR approved and LLOYD's registered cross-linked rubber insulated wires, recommended for internal wiring of lighting fixtures, switchboards, distributor boards, appliances and units on board of ships, boats and vessels.

H05Z1Z1-F CPR class Dca-s2,d2,a1

IMQ-HAR halogen free and enhanced fire-resistance multi-core LSZH flexible cables, conforming to BS EN 50525 ( 318-B LSZH/H05Z1Z1-F). H05Z1Z1-F comply with class Dca-s2,de,a1 of new CPR regulation

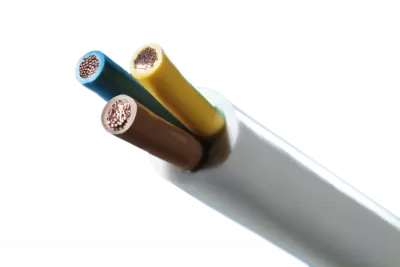

Halogen-free Cables H05Z1Z1-F, H05Z1Z1H2-F

IMQ-HAR halogen free multi-core LSZH flexible cables, conforming to BS EN 50525 ( 318-B LSZH/H05Z1Z1-F). H05Z1Z1-F comply with class Eca of new CPR regulation.

H07Z-K PLUS SI-NRG 105 LLOYD'S REG.

Halogen-free wires LSFR0H

Single-core low smoke zero emission cables (LSZH) FZ1 and UZ1 LSZH wires, fire-retardant according to IEC 60332-3-24; they are available also with rating of 105°C, FZ1 105°C and UZ1 105°C LSZH.

Among the 318-B LSZH wires of Salcavi you will find products suitable for Special applications and Household Appliance

Discover the advantages and main features of the 318-B LSZH wires by Salcavi
